In order to dissipate the electrostaticcharge from various equipment, we offer a wide range of static grounding clamps with cables, which are all ATEX approved, certification:
Ex II 2 G T6

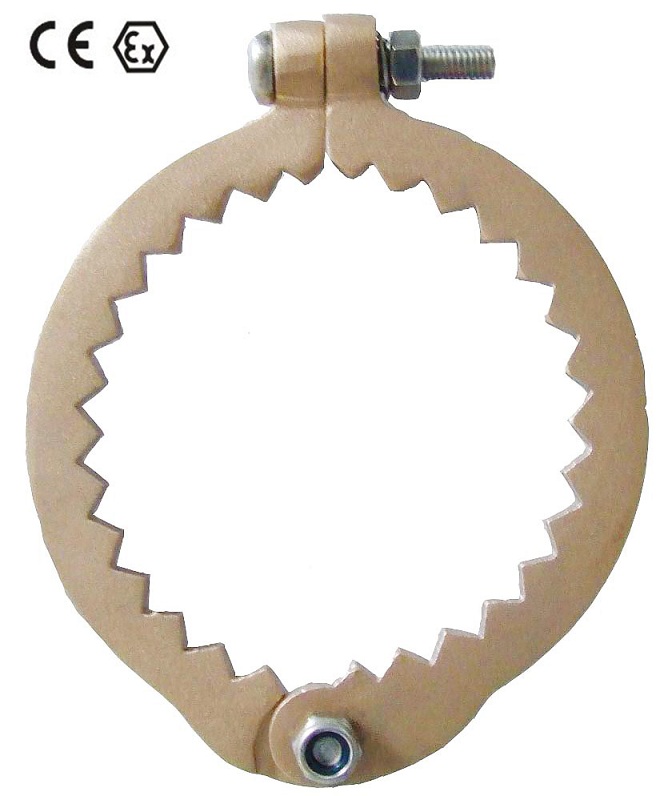

We make a series of bronze pipe clamps which can beadjusted from
1” to 3”.
Model | Size | Pipe Range | Weight |
PC-02 | 1” | 33mm to 35mm | 50 g |
PC-03 | 1 1/2” | 47mm to 50mm | 150 g |
PC-04 | 2” | 59mm to 62mm | 200 g |
PC-05 | 2 1/2” | 75mm to 78mm | 260 g |
PC-06 | 3” | 88mm to 92mm | 280 g |
◆ The rugged design provides a positive connection topenetrate paint and rust.
◆ Equipotential connection for loading armsand pipes.
◆ Can be produced tospecific sizes.
