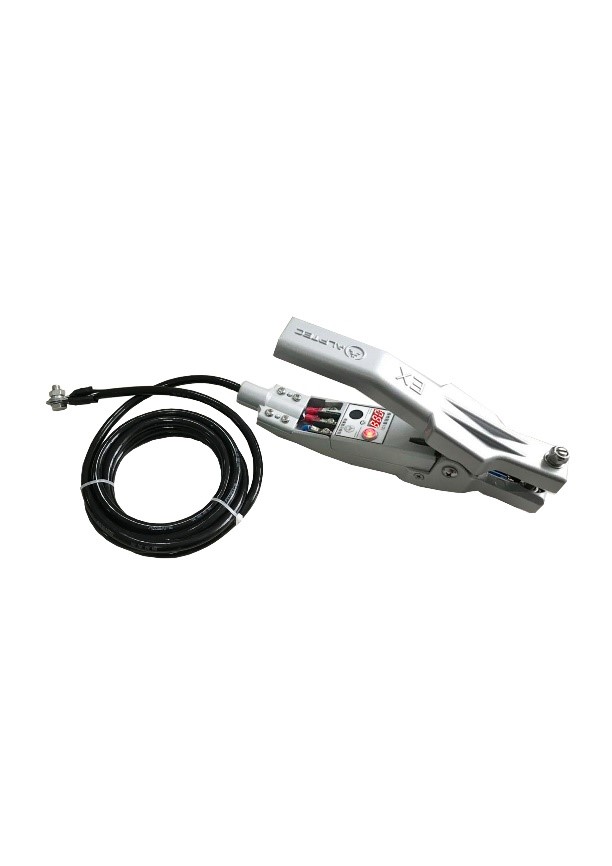

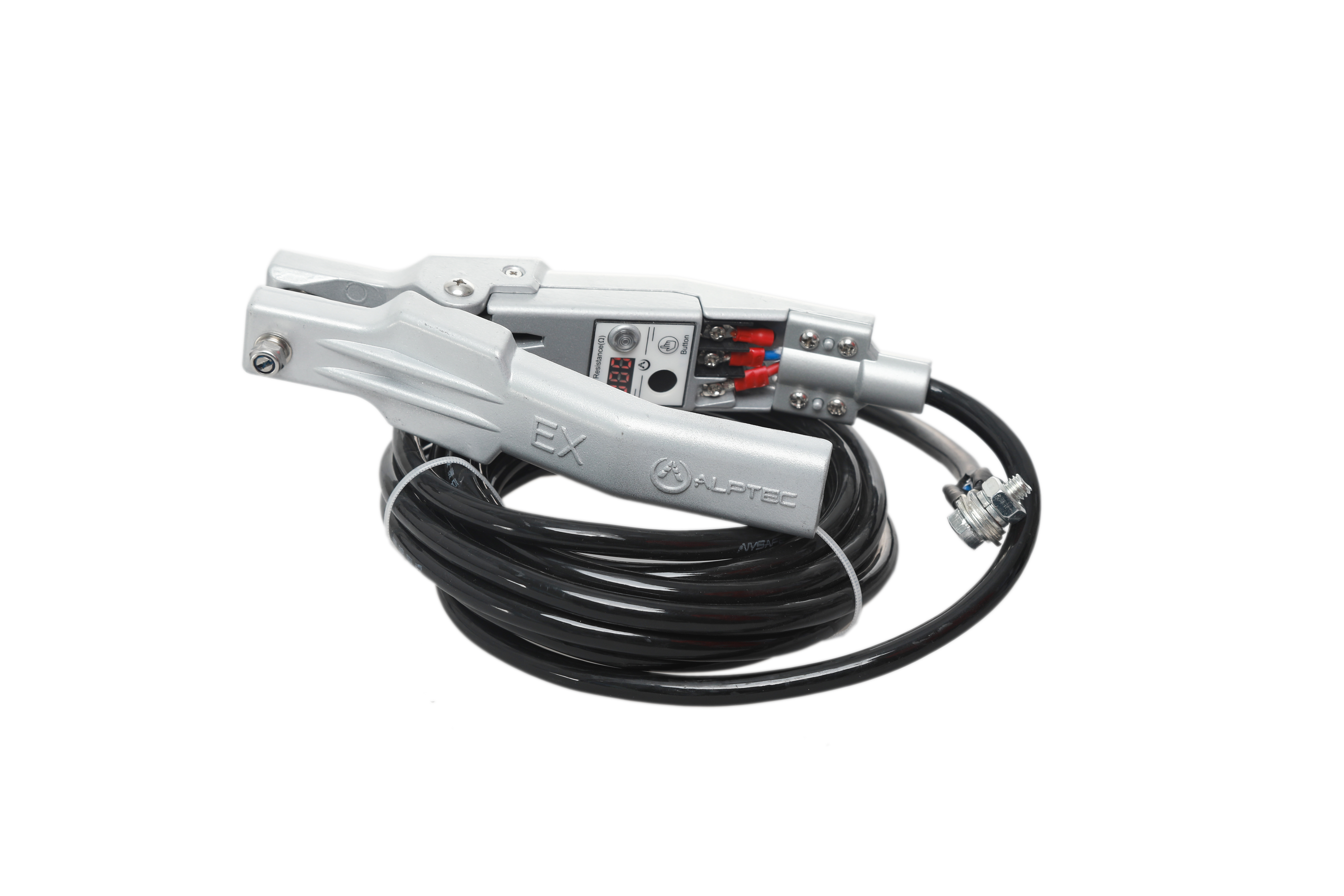

The accumulation of static charges during the fueling transfer process can lead to costly explosions, fire and personnel injury. The Self-testing Grounding Clamp with visible & audible alarms is designed to dissipate static accumulation and verify proper grounding. It is intrinsically safe for use in hazardous locations.
Cable length: 5m(16.4ft.)
Clamp: SA-Y(visible and audible alarm)
Alarm: Audible and visible alarms
Alarm Volume: ＞90dB (measured at a 30cm straight distance)
Monitoring Set Point: 10 ohms
Power Supply: Integrated lithium battery (3.6V)
Certification: ExiaIICT4 Gb
◆ Low energy consumption design makes battery replacement unnecessary during normal operation.
◆ Digitron resistance display
◆ After 3 minutes' continuous alarm it will be in the resting status and it will return to normal in a closed circuit.
◆ Circuit part is totally enveloped by epoxy resin which makes it damp-proof, rustproof, corrosion-proof and shock-proof.
